Bottle Washing Machine

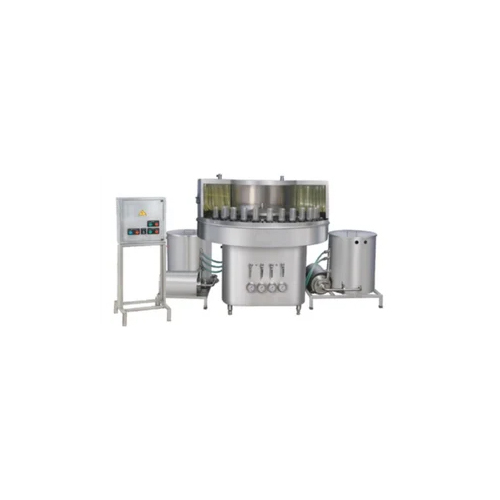

Machine Type: Semi-Automatic Bottle Types: Glass, PET, HDPE, Vials, Jars Bottle Diameter Range: 30 mm “ 100 mm Bottle Height Range: Up to 300 mm (customizable) Washing Zones: Air, recycled water, fresh water (configurable) Operation: Manual loading/unloading, automatic spraying Construction Material: SS304 / SS316 for contact parts Output Capacity: 20 “ 60 bottles per minute (depending on operator speed) Water Consumption: 100“300 liters/hour (approx.) Air Requirement: 4“6 bar (if air rinsing is included) Power Supply: 220V, 50Hz / Single Phase Applications: Suitable for pharmaceutical, food, chemical, and beverage industries

Machine Type: Automatic Rotary Type Bottle Diameter Range: 30 mm “ 100 mm (customizable) Bottle Height Range: 50 mm “ 300 mm Washing Stations: 4 to 16 heads (as per model) Washing Cycles: Air wash, water wash (recycled & fresh), purified water, optional hot water Production Speed: Up to 100 “ 300 bottles/min (model dependent) Material of Construction: SS304 / SS316 for contact parts Drive Mechanism: Gear-driven rotary platform Utilities Required: Water Supply: 100“500 liters/hour Compressed Air: 4“6 bar Power Supply: 220V/380V, 50Hz / 60Hz Applications: Pharmaceutical, food, cosmetic, and chemical bottle washing
